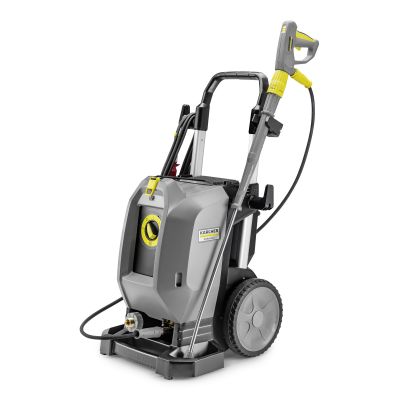

High-pressure cleaners HD 10/25-4 S
The HD 10/25-4 S cold water high-pressure cleaner delivers premium quality, high performance and helpful assistance systems. Designed for ergonomic working and maximum portability.
The HD 10/25-4 S cold water high-pressure cleaner takes ergonomic working to the next level. The practically designed EASY!Force Advanced trigger gun makes it effortless to use without any holding force. A rotating 1050-millimetre stainless steel lance delivers maximum efficiency. The Servo Control enables the user to control the pressure and water volume straight from the trigger gun/lance. Assistance systems and an LED status display also enhance the user-friendly design. You can count on Kärcher to use the best materials to guarantee the highest, longest-lasting quality. Working away inside the machine is a hard-wearing wobble pump with stainless steel pistons and a brass cylinder head. The HD 10/25-4 S is driven by a 4-pole low-speed motor with air-water cooling system. Integrated aluminium frame carriers reduce the weight and provide a lightweight yet hard-wearing chassis, making crane loading an option. The upright structure, whereby the motor and pump unit is installed in a vertical arrangement, offers maximum portability in practice. The compact design also incorporates clever accessory storage such as a stowage compartment and adjustable hooks.
Feature and Benefits

Compact upright design concept based on vertical arrangement of motor and pump unit

4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head

Intelligently designed service concept facilitates quick operations on site
Assistance systems and LED status display
- Integrated electronics system for machine monitoring.
- Automatic switch-off in case of low voltage range or overvoltage.
- Switches off in case of leaks or phase failure.
Wide-ranging accessories with EASY!Lock
- Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
- EASY!Force Advanced for fatigue-free work without any holding force.
- Rotating 1050 mm stainless steel lance.
Extensive range of accessories and attachment kits
- Stowage compartment.
- Adjustable hooks, e.g. for storing second lance or electric cable.
- Storage for high pressure hose.
Specifications
Technical data
Power supply (Ph/V/Hz) | 3 / 376 - 424 / 50 |
Flow rate (l/h) | 500 - 1000 |
Inlet temperature (°C) | 60 |
Working pressure (bar) | 80 - 250 |
Max. pressure (bar) | 280 |
Connected load (kW) | 8.8 |
Power cable (m) | 5 |
Nozzle size | 047 |
Water inlet | 1″ |
Colour | anthracite |
Weight (with accessories) (kg) | 69.8 |
Weight incl. packaging (kg) | 78.1 |
Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
Equipment
- 4-pole three-phase motor with air and water cooling
- 3-piston axial pump: with stainless steel pistons
- Pressure cut-off

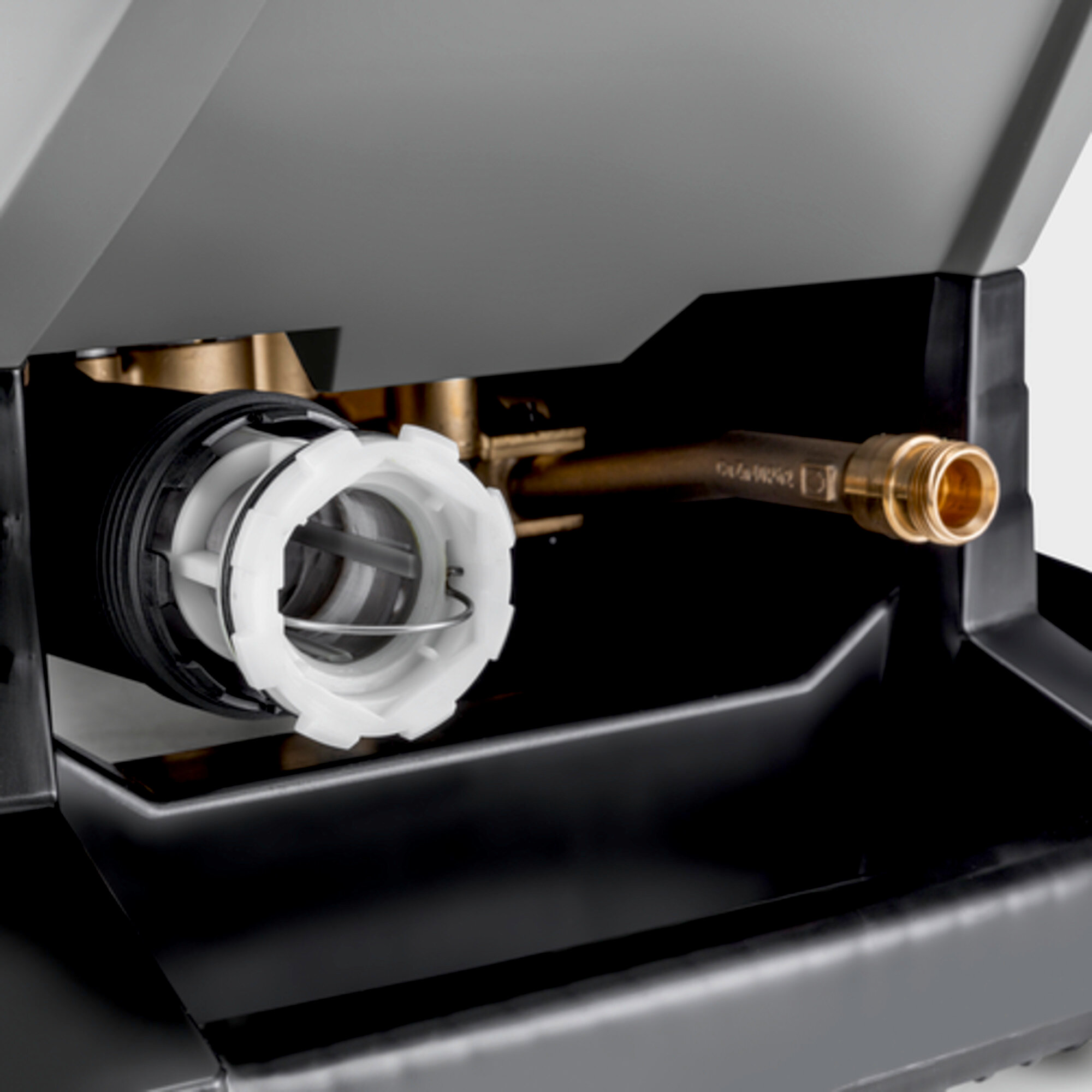

- Integrated water fine filter
- Motor protection electronics with LED display
- Sight glass for oil level
- Brass water inlet
