High-pressure cleaners HD 9/23 De

For independent use in areas with poor infrastructure: the HD 9/23 De diesel-powered, mobile cold water high-pressure cleaner with 230 bar pressure for high cleaning performance.

NGN 0.00
Out of stock
SKU
1.187-907.0
Delivery:2-4 Working Days
Receive notifications every time the product comes back in stock

Ideal wherever difficult external conditions and demanding cleaning tasks meet: the HD 9/23 De diesel-powered cold water high-pressure cleaner with Yanmar diesel engine generates the electricity it needs itself. If necessary, the required water can also be suctioned directly from bodies of water, allowing you to work in areas with poor infrastructure. With a water pressure of 230 bar, the machine measures up to almost any task. Its ergonomic frame concept and the puncture-proof wheels guarantee maximum mobility, while the robust basic frame can withstand heavy-duty use. With the EASY!Force high-pressure gun, which makes use of the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, as well as the EASY!Lock quick-release fasteners, which make set-up and dismantling five times faster than with conventional screw connections, the machine is very convenient to use. A large water filter and a thermostat valve are built in to protect the pump. Useful optional enhancements, like the extra cage frame with eyelets for crane loading, round off the machine.

Feature and Benefits

1187908_det_2502x502_2

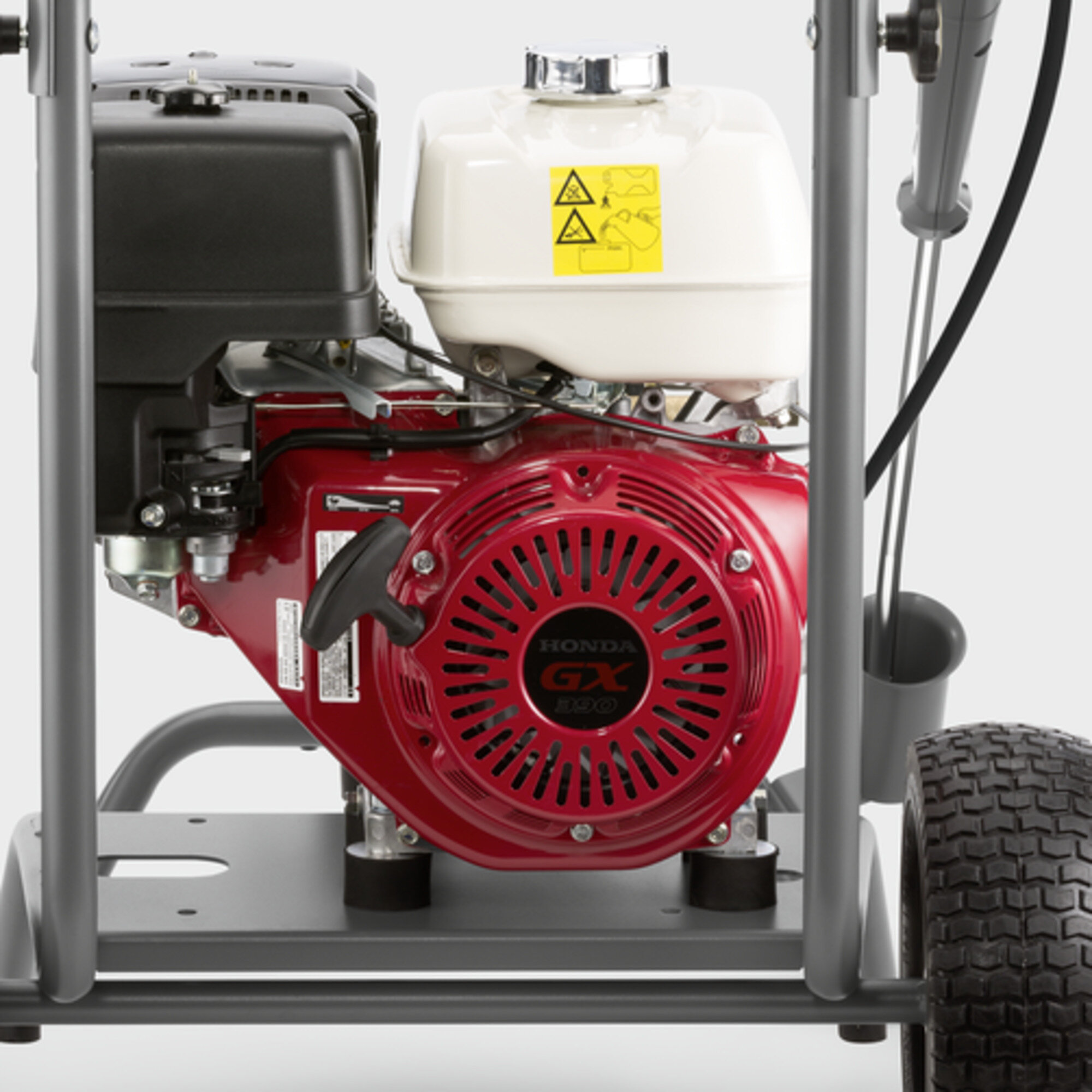

Maximum independence

Fitted with reliable Honda or Yanmar engines for use without an external power supply. Can suck up water – e.g. from lakes or ponds – and use it for cleaning.
1187908_det_2502x502

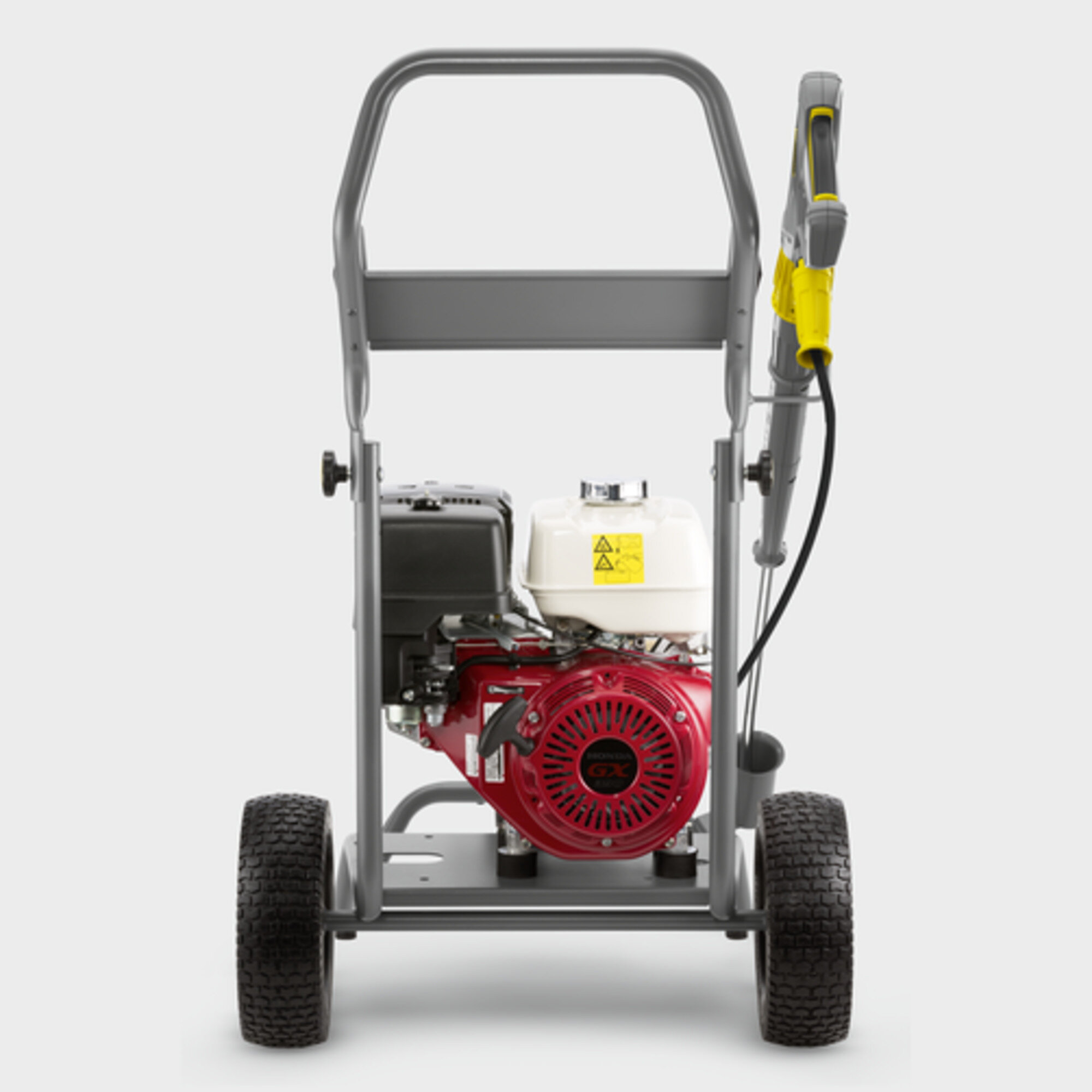

Optimum ease of use

The ergonomic frame concept makes transport on uneven ground easier. Storage possibilities for all accessory parts directly on the machine. Puncture-proof wheels guarantee permanently high mobility.
1187907_det_1502x502

Highly versatile

Optional cage frame with eyelets for crane loading reliably protects the machine. Hose reel attachment kit for shorter set-up & finishing-off times available as an optional extra. Portable version with robust tubular frame specially designed for painters and plasterers (HD 728 B).

For the toughest jobs
  • Robust basic frame for daily use in tough conditions.
  • Large water filter to protect the pump.
  • Thermostat valve to protect the pump from overheating in recirculation mode.


Specifications

Technical data
Flow rate (l/h) 400 - 930
Working pressure (bar/MPa) 40 - up to 230 / 4 - up to 23
Max. pressure (bar/MPa) 270 / 27
Inlet temperature (°C) 60
Water inlet 1″
Drive type Diesel
Motor manufacturer Yanmar
Motor type L 100 V
Number of users at one time 1
Portability Mobile
Colour anthracite
Weight (with accessories) (kg) 112,5
Weight incl. packaging (kg) 115,5
Dimensions (L × W × H) (mm) 866 x 722 x 1146
Equipment
  • Infinitely variable pressure and water flow regulation
  • Electro start
  • Detergent function: Suction
