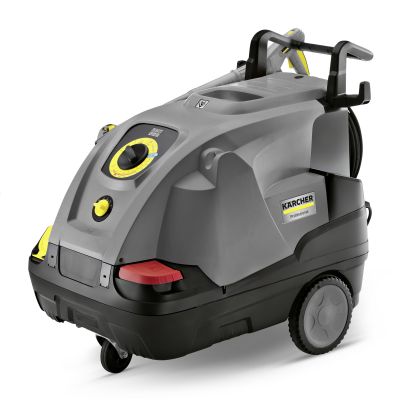

High-pressure cleaners HDS 6/14 C

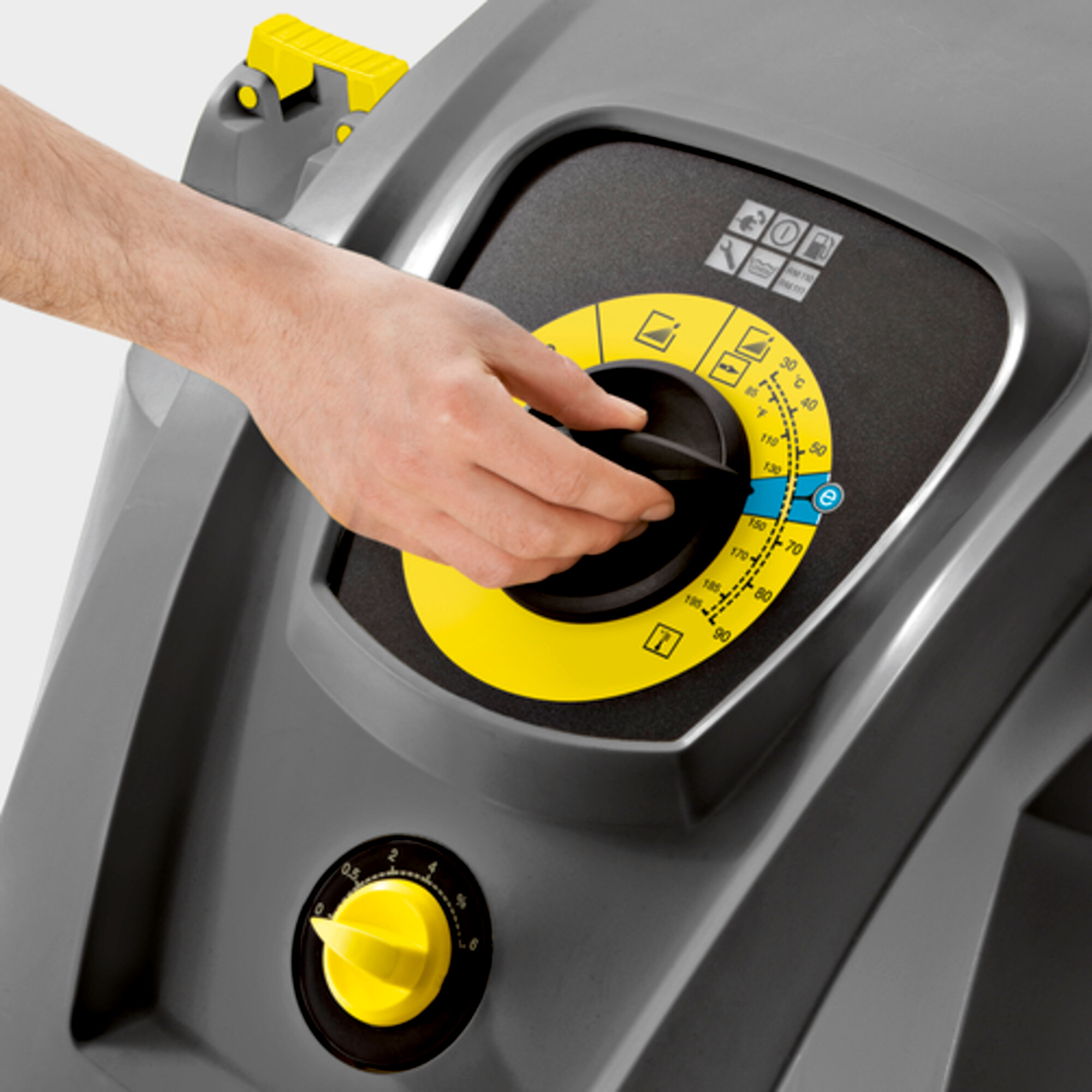

1-phase hot water high-pressure cleaner HDS 6/14 C with eco!efficiency mode, EASY!Force trigger gun, as well as intuitive single-button operation.
Powerful hot water high-pressure cleaner in the HDS compact class from Kärcher: with the unique eco!efficiency mode the HDS 6/14 C combines economical and environment-friendly work with superb comfort for the user. The EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity. The operation is also effortless, after all the machine has an intuitive single-button operation. Large wheels and a steering roller/castor ensure smooth mobility, whereas the robust chassis with integrated tanks for fuel and cleaning agent also survives tougher applications without difficulty. Practical storage compartments for accessories, nozzles, etc. round off the clever concept ofthe 1-phase machine.
Feature and Benefits
Economic efficiency
User-friendliness

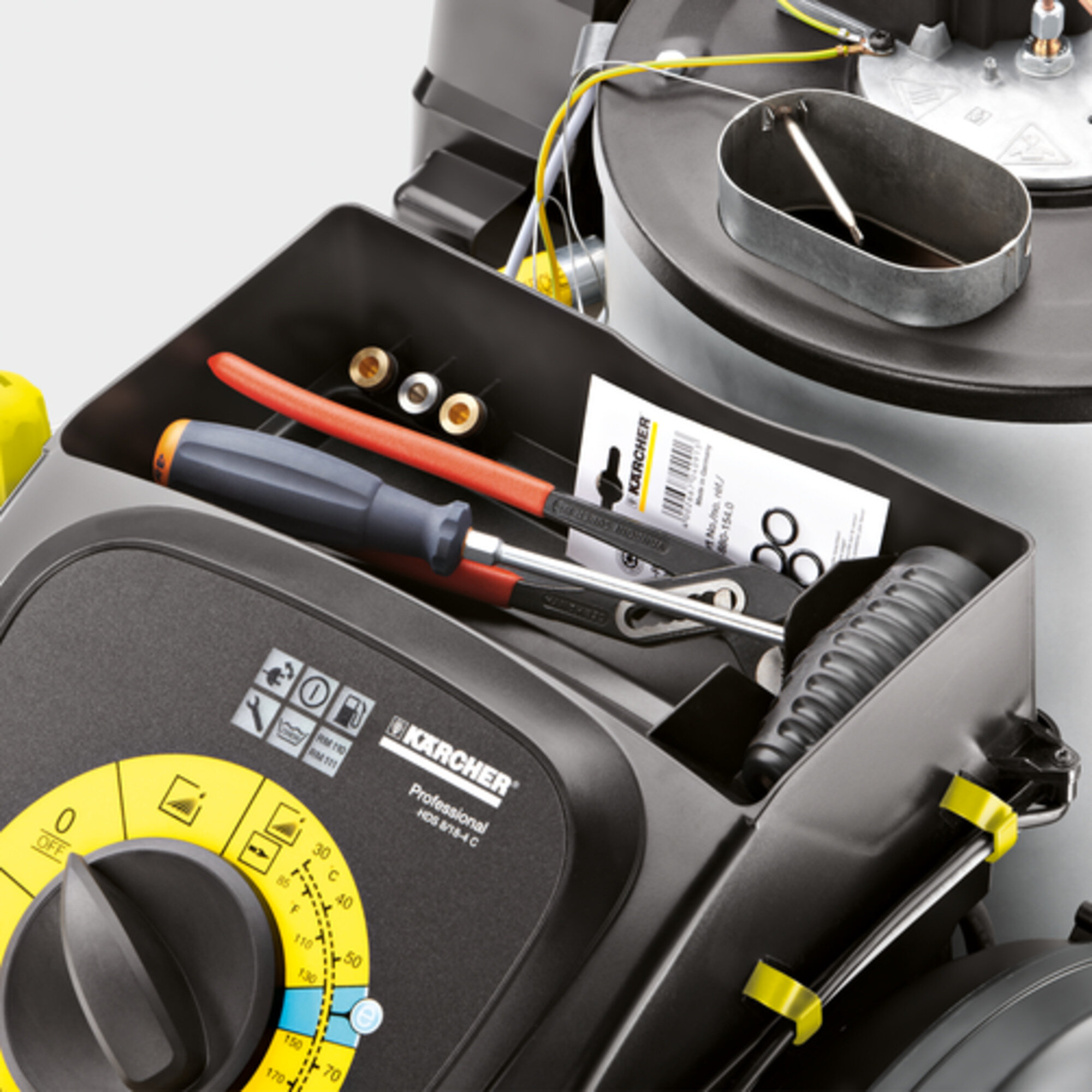

Storage
Reliability
- The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
- Large water filter protects pump against damage.
- Water softening system to protect the heating coil against calcification damage.
Portability
- "Jogger" design with large wheels and steering roller.
- Large integrated handles in the chassis.
- Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release fasteners
- Fatigue-free work at last: the EASY!Force high pressure gun.
- EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Specifications
Technical data
| Power supply (Ph/V/Hz) | 1 / 230 / 50 |
| Flow rate (l/h) | 240 - 560 |
| Working pressure (bar/MPa) | 30 - 140 / 3 - 14 |
| Temperature (for supply 12 °C) (°C) | max. 80 |
| Connected load (kW) | 3.6 |
| Consumption of heating oil or gas at full load (kg/h) | 3.5 |
| Consumption of heating oil in eco!efficiency mode (kg/h) | 2.8 |
| Power cable (m) | 5 |
| Fuel tank (l) | 15 |
| Weight (with accessories) (kg) | 100 |
| Weight incl. packaging (kg) | 108.7 |
| Dimensions (L × W × H) (mm) | 1060 x 650 x 920 |
Equipment
- High-pressure hose length: 10 m
- High-pressure hose specification: DN 6, 250 bar
- Soft Damping System (SDS)
- Pressure cut-off

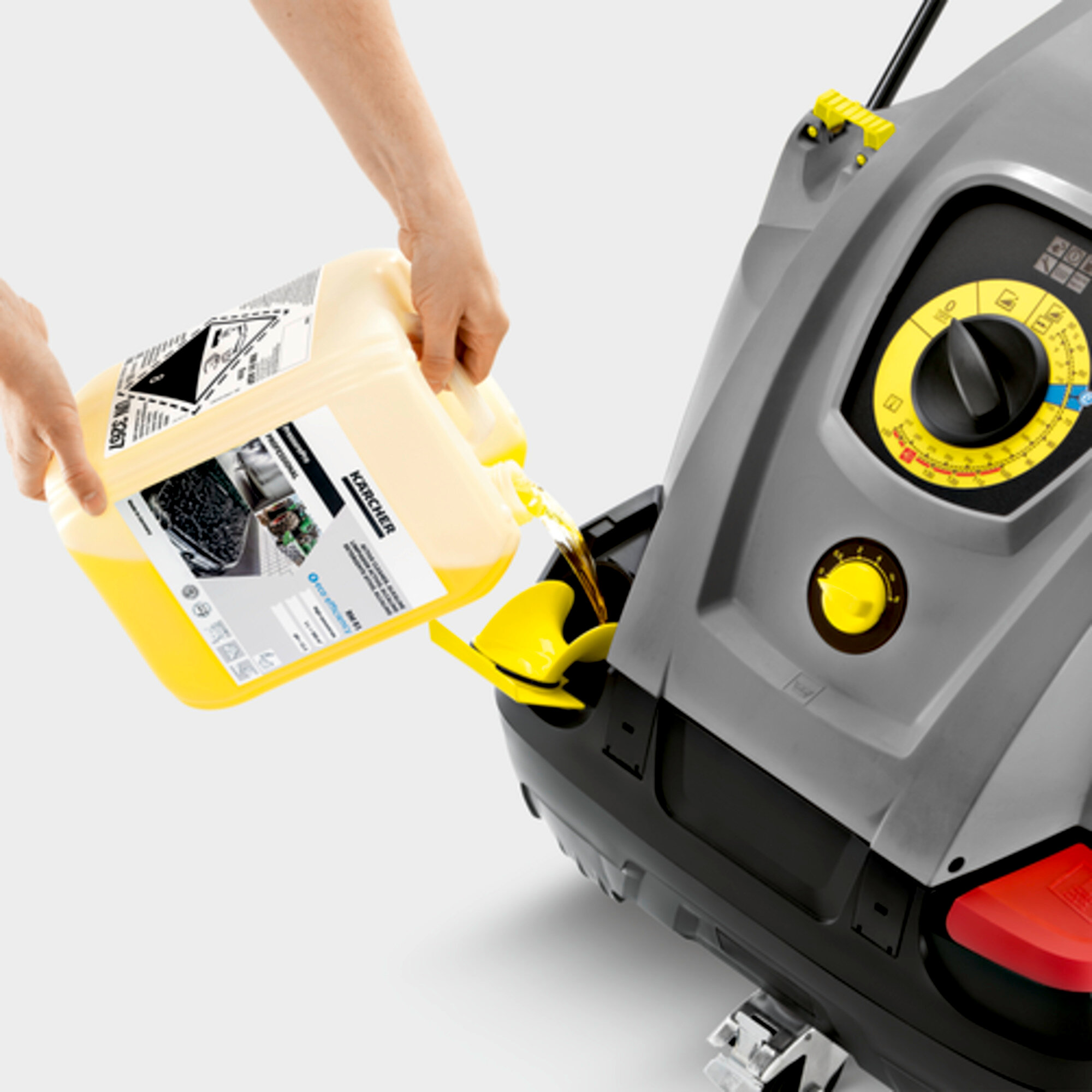

- Integrated fuel and detergent tank
